React Native in one day: Android Application for tracking your spends with Google Maps Support

Usually I travel a lot by my car and make blog posts about it. And usually readers ask me about the mileage, gas consumption and other useful information.

DiatomEnterprises is a company providing Software Development Services using React Framework.

Development of Android app on React Native

Usually, I travel a lot by my car and make blog posts about it. And usually, readers ask me about the mileage, gas consumption, and other useful information. So I have decided to create a simple application, where I would be able to save all this information just in a few clicks, without any registrations, advertisements, and tracking applications. I’ve never written any Android application and I wanted to develop the app using the React library, so react-native was the best choice for me.

(*) More ReactJs app examples you may find in the following article:

Basic setups

I don’t want to write another guide about how to set up react-native and Android studio. All the information about the installation steps is described here. Just don’t forget to turn on KVM in bios, if your system supports it.

Let’s create a new project with

react-native init project_name
react-native init gas_counter_map

And cd into it:

cd gas_counter_map

Now we have an empty project that we can build and test on our virtual mobile.

First, we need to run a virtual device.

If you haven’t copied the path to your emulator yet, you need to open an Android studio and run the virtual device from there. As soon as you do it, you shall copy string that runs the emulator from the console at the bottom of the Android-studio. Later you can use this copied command to run your device.

/home/YOUR USER NAME/Android/Sdk/tools/emulator -netdelay none -netspeed full -avd Xperia

Then, if you haven’t launched React Native yet, let’s do it.

react-native start

And finally, we need to build our application’s code.

react-native run-android

If everything is OK, you should see an Android screen with the initial text on it.

Let’s modify our code now.

Configuring and using react-native-maps

Before taking the next steps, I suggest you to initialize a git repository and commit your code.

git init

git add .

git commit -m “Initial commit”

It will save your progress and later you will be able to undo your changes at any time.

I use react-native-maps package because it has been suggested as a stable map package for Android applications by react-native developers. The guide to set-up a package is here.

Let’s add a component to our view.

<MapView  />

And let’s add some style to it.

<MapView
  style={styles.map}
/>

And in styles section of index.android.js

map: {
  height: 150,
  alignSelf: 'stretch',
},

Let’s try it!

react-native run-android

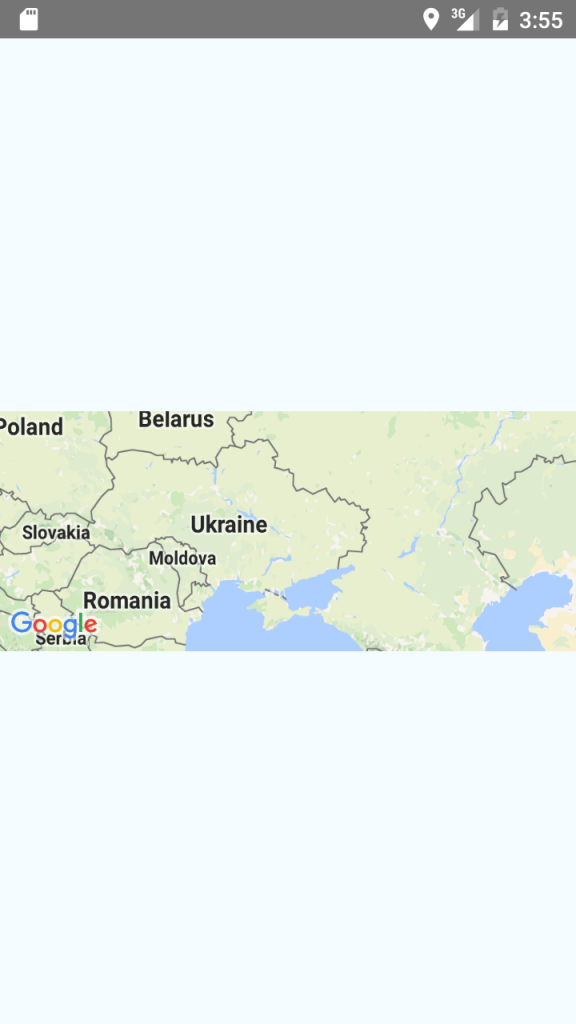

At this step, we should see a working map on our virtual device’s screen.

React native for using in Android Application with google maps support

If at this stage you see a black grey space with “Google” label than you’ve missed some Google key configurations.

Now you may commit your changes.

Getting the current user’s location

At first, we need to request permission in AndroidManifest.xml

<uses-permission android:name="android.permission.ACCESS_FINE_LOCATION" />

Let’s define our variables in index.android.js under a class definition.

constructor(props) {
   super(props);
   this.state = {
     initialCoords: 'unknown', //<- Our coords
     gotGpsData: false,
   };
 }

counstructor() initializes the state with our given variables and their values.

For our GPS data we need to use a navigator.getCurrentPosition and navigator.watchCurrentPosition methods
getGpsData(){
   navigator.geolocation.getCurrentPosition(
     (position) => {
       this.setState({initialCoords: position.coords});
       this.setState({gotGpsData: true});
     },
     (error) => alert(error),
     {enableHighAccuracy: true, timeout: 20000, maximumAge: 1000}
   );

   navigator.geolocation.watchPosition(
     (position) => {
       var lastPosition = JSON.stringify(position);
       this.setState({initialCoords: position.coords});
       this.setState({gotGpsData: true});
       this.render();
     },
     (error) => {}
   );
 }

First, we are getting our user’s location, and then we are creating watcher for the changes in his location. If a user has changed his location, we are rendering view again with an updated map. If there were no errors, we are setting our gotGpsData boolean to true.

Let’s update our render() action with the new opportunities!

render() {
   if (!this.state.gotGpsData) {
     this.getGpsData();
     return this.renderLoadingView();
   }
   return (
     <View style={styles.container}>
       <MapView
         style={styles.map}
         region={{
           longitude: this.state.initialCoords.longitude,
           latitude: this.state.initialCoords.latitude,
           latitudeDelta: 0.5,
           longitudeDelta: 0.5,
         }}
       />
       <Text style={styles.instructions}>
         {this.state.initialCoords.latitude}
       </Text>
     </View>
   );
 }
}

What are we doing in this part of the code?

If the user hasn’t given access to his GPS coords or coords are not yet received, we are trying to get them again and calling renderLoadingView. We will talk about it later.

If we have got the user’s coordinates, we are creating a map widget with the user’s location.

Under the map, we will see user’s initialLatitude, so we will be able to check our watchers and other code.

latitudeDelta (the vertical distance represented by the region), and longitudeDelta (the horizontal distance represented by the region) can be set at 0.001 or as per your need. The larger number is – the bigger view distance from the place.

What about renderLoadingView?

Let’s update our boring view a bit and add ProgressBarAndroid to the import{} section.

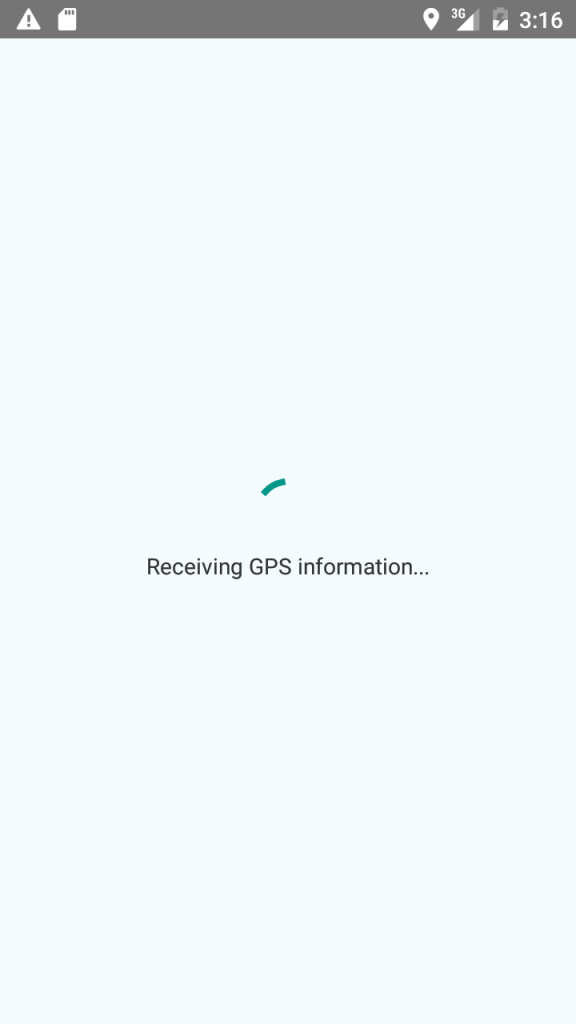

Now we can write a nice “loader” that the user will see until we receive any coordinates.

renderLoadingView(){
   return (
     <View style={styles.container}>
       <ProgressBarAndroid />
       <Text style={styles.instructions}>
         Receiving GPS information...
       </Text>
     </View>
   );
 }

Android Application for tracking your spends with Google Maps Support



Now you may want to commit your changes.

Inputs for prices and mileage

So, we are writing an application about prices, mileage and gas consumption, right? Then we need inputs for these data.

At first, we need to add a TextInput component to the import{} section of our application.

To create a basic input we can use a code like this:

<TextInput style={{height: 40, borderColor: 'gray', borderWidth: 1}}  />

But how will we assign this data to a variable?

Let’s add some new variables to our constructor

constructor(props) {
   super(props);
   this.state = {
     initialCoords: 'unknown',
     gotGpsData: false,
     spentMoney: 0, // <- NEW
     filledLiters:0, // <- NEW
     droveMileage: 0, // <- NEW
     gotCoords: 'unknown',
   };
 }

And a callback on the input field change.

<TextInput
  style={{height: 40, borderColor: 'gray', borderWidth: 1}}
  onChangeText={(spentMoney) => this.setState({spentMoney})}
  value={this.state.text}
/>

At each change of the input, we will update our local variable and use it in our input. Good? Not yet!

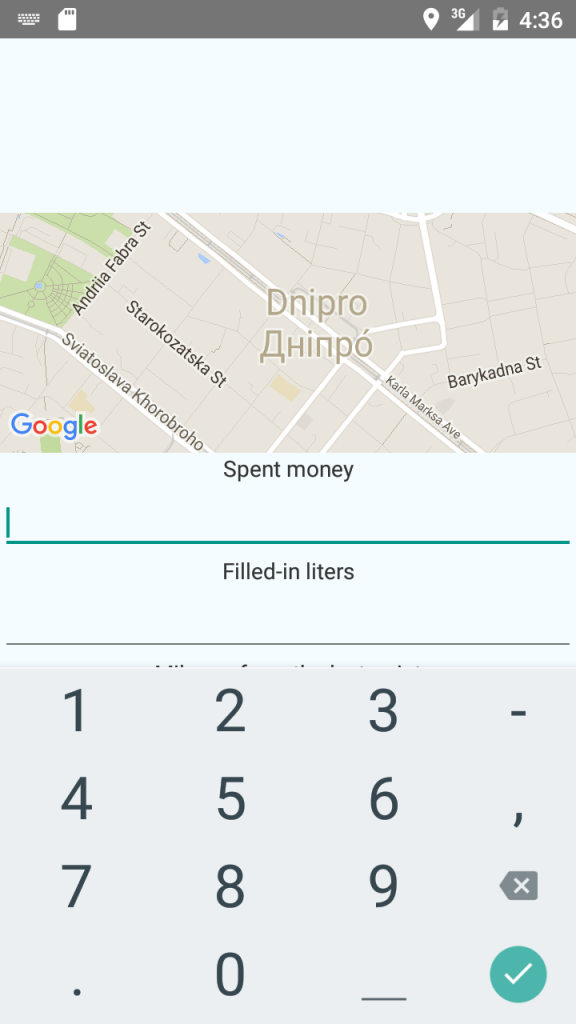

Android Application for tracking your spends with Google Maps Support

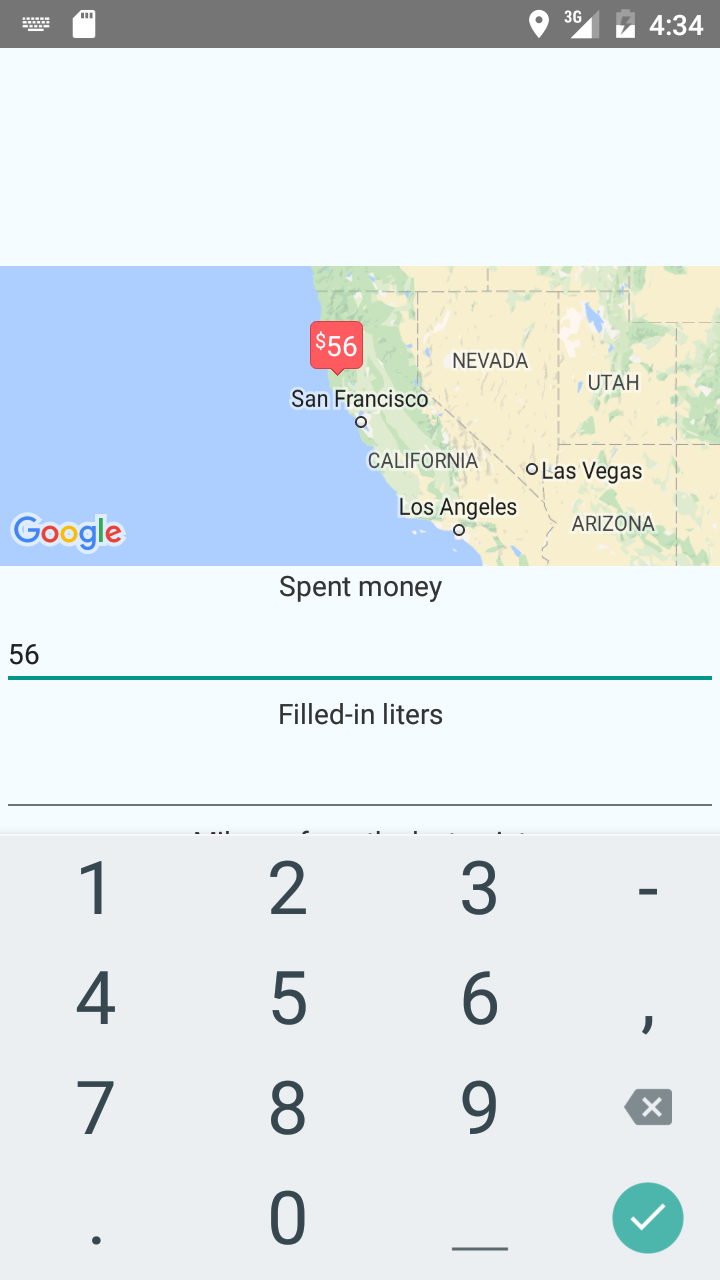

All our data are digital. For a better UI, we can update our inputs, so that they show a numeric keyboard on each click by setting a keyboardType property:

<TextInput
  style={{height: 40, borderColor: 'gray', borderWidth: 1}}
  onChangeText={(spentMoney) => this.setState({spentMoney})}
  value={this.state.text}
  keyboardType={'numeric'}
/>

Let’s update our view with other inputs and captions.

render() {
    if (!this.state.gotGpsData) {
      this.getGpsData();
      return this.renderLoadingView();
    }
    return (
      <View style={styles.container}>
        <MapView
          style={styles.map}
          region={{
            longitude: this.state.initialCoords.longitude,
            latitude: this.state.initialCoords.latitude,
            latitudeDelta: 0.01,
            longitudeDelta: 0.01,
          }}
        />
        <Text style={styles.instructions}>
          Spent money
        </Text>
        <TextInput
          style={{height: 40, borderColor: 'gray', borderWidth: 1}}
          onChangeText={(spentMoney) => this.setState({spentMoney})}
          value={this.state.text}
          keyboardType={'numeric'}
        />
        <Text style={styles.instructions}>
          Filled-in liters
        </Text>
        <TextInput
          style={{height: 40, borderColor: 'gray', borderWidth: 1}}
          onChangeText={(filledLiters) => this.setState({filledLiters})}
          value={this.state.text}
          keyboardType={'numeric'}
        />
        <Text style={styles.instructions}>
          Mileage from the last point
        </Text>
        <TextInput
          style={{height: 40, borderColor: 'gray', borderWidth: 1}}
          onChangeText={(droveMileage) => this.setState({droveMileage})}
          value={this.state.text}
          keyboardType={'numeric'}
        />
        <Text style={styles.instructions}>
          {this.state.initialCoords.latitude}
        </Text>
      </View>
    );
  }
}

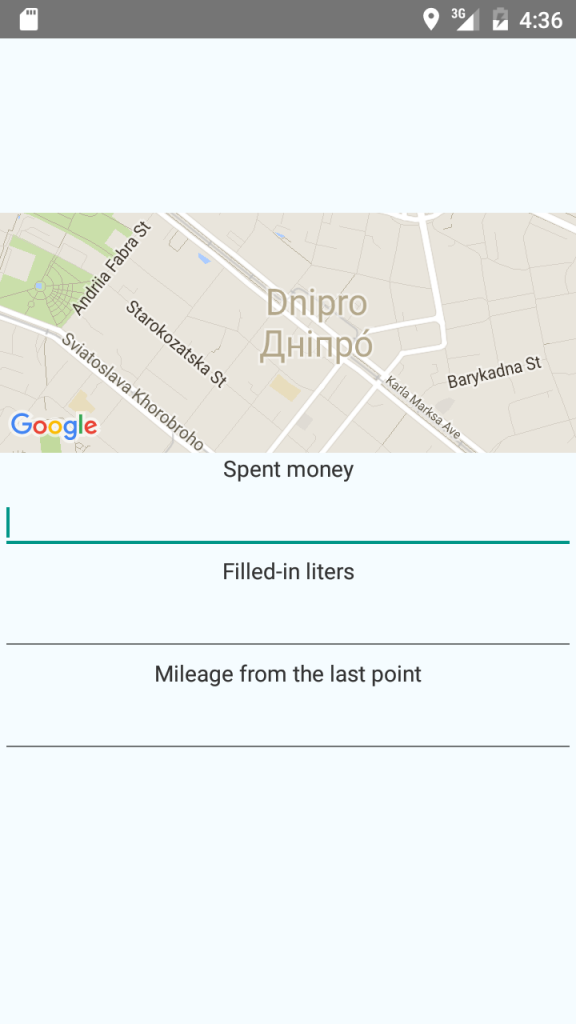

Android Application for tracking your spends with Google Maps Support

Now we can modify our map.

You may want to commit your changes and test them so we can proceed to the next step.

Adding price markers

Google Maps have a great tool called “markers” to point out the location. I suggest using this tool to point out the current user’s place. react-native-maps have a “price marker” with which we will show our user how much he has spent and where.

First, we need to download a PriceMarker sample in our project’s folder, so that we could use it on our map.



https://github.com/DiatomEnterprises/react-native-maps/blob/master/example/examples/PriceMarker.js



Next – we need to add it in our main project

import PriceMarker from './PriceMarker';

Then we can add this marker to our map and show the value of Spent Money variable. In order to do this you need to put this code inside <MapView style=”…”..> </MapView> tag:

<MapView style=......>
   <MapView.Marker
      coordinate={this.state.initialCoords}
      draggable
   >
      <PriceMarker amount={this.state.spentMoney} />
   </MapView.Marker>
</MapView>

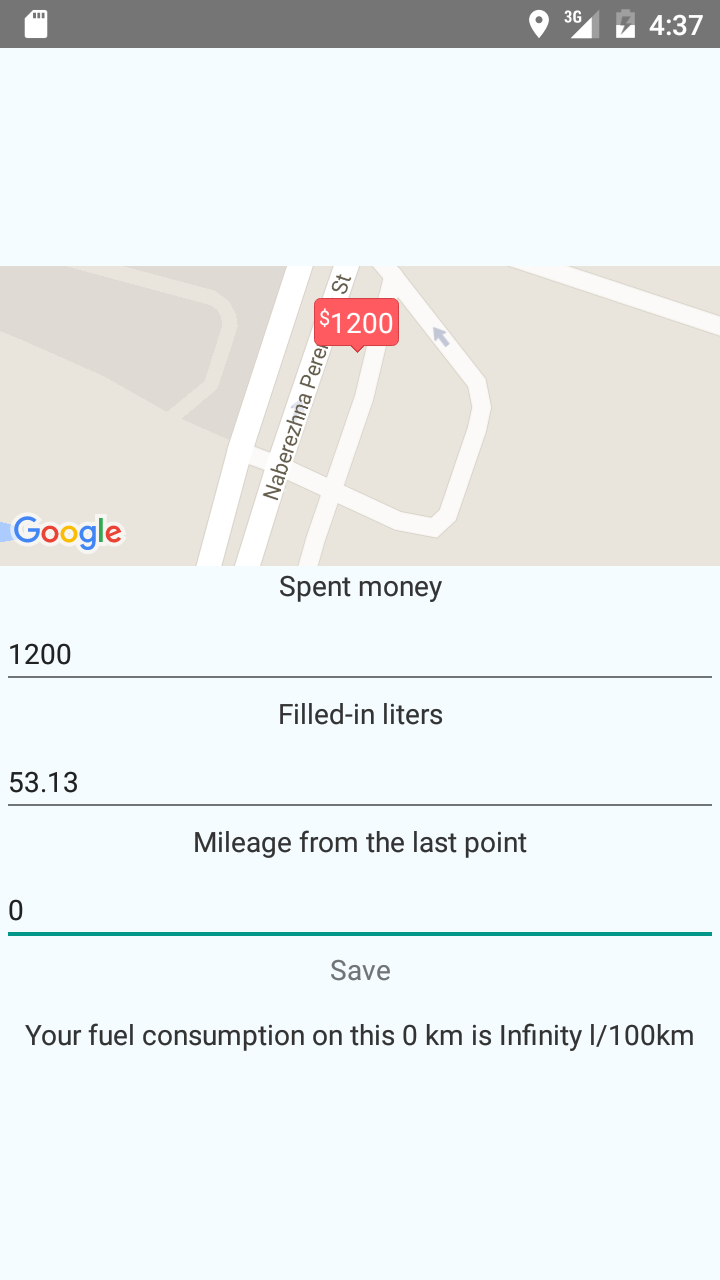

After building your project you should see something like this:

Android Application for tracking your spends with Google Maps Support Android Application for tracking your spends with Google Maps Support

Now we are ready to save our data.

You may want to commit your changes and test them so we can go to the next step.

Saving current data

To save our current data, we will use AsyncStorage. It’s a simple, asynchronous, persistent, key-value storage system that is global to the app.

At first, we need to add AsycStorage to the import section

import {
 AsyncStorage,}

Next – let’s update our state. We need a variable that will save records count from the database to work with IDs. Also, we need a lastRecords variable that will contain our previous records. And finally, we need a method that will synchronize our storage with the application on startup.

constructor(props) {
  super(props);
  this.state = {
    ...
    recordCount: 0,
    lastRecords: [],
    ...
  }
  this.syncStorage();
}

syncStorage() the method will be called on startup and will synchronize the current records and their count with the state.

syncStorage() {
  AsyncStorage.getAllKeys((err, keys) => {
    AsyncStorage.multiGet(keys, (err, stores) => {
      this.setState({recordCount: stores.length});
      this.setState({lastRecords: stores});
    });
  });
}

In this part of the code, at first, we are getting all of the keys that AsyncStorage contains.

Then, we are getting all the records by these keys.

Next, we need to create a method to save our data in a storage

saveData() {
  var saveData = {
    "longitude": this.state.initialCoords.longitude,
    "latitude": this.state.initialCoords.latitude,
    "spentMoney": this.state.spentMoney,
    "filledLiters": this.state.filledLiters,
    "droveMileage": this.state.filledLiters,
    "timestamp": Math.round(new Date().getTime() / 1000),
  };
  AsyncStorage.setItem("record_"+this.state.record_count+1, JSON.stringify(saveData)).then(
    this.setState({message: "Saved record #"+this.state.record_count+1})
  ).then(this.sync_storage()).done(
    this.render()
  );
}

AsyncStorage.setItem() Sets a value for the key and call the callback on completion

I’ve added a timestamp in milliseconds, thus, we can get information about when we have done this record.

Now, let’s update our views:

<View style={styles.container}>
  <MapView>
    <MapView.Marker ...    > ...  </MapView.Marker>
    {
      this.state.lastRecords.map(function(item, index){
        item = JSON.parse(item[1])
        coords = { latitude: item.latitude, longitude: item.longitude }
        return (
          <MapView.Marker
            coordinate = { coords }
            draggable
          >
            <PriceMarker amount={item.spentMoney} />
          </MapView.Marker>
        )
      }.bind(this))
    }
  </MapView>
  …
  <TouchableHighlight
   activeOpacity={0.6}
   underlayColor={'white'}
   onPress={() => this.saveData()}>
    <Text style={styles.button}>Save</Text>
  </TouchableHighlight>
  <Text style={styles.instructions}>
    {this.state.message}
  </Text>
  <Text style={styles.instructions}>
    Your fuel consumption on this {this.state.droveMileage} km is {Math.round(this.state.filledLiters * 100 / this.state.droveMileage *100)/100} l/100km
  </Text>
</View>

We have added a cycle for generating markers inside the <MapView> tag. This part of code maps all previous records and creates markers on a map from them.

<TouchableHighlight>  is a wrapper for making views respond properly to touch.  The main part is onPress event that calls this.saveData() method.

this.state.message returns a message about successful save.

Finally, we calculate fuel consumption basing on the mileage driven. We assume that the previous time user filled up his car and check how much fuel he has spent until now. Then we take the driven mileage and calculate his fuel consumption.

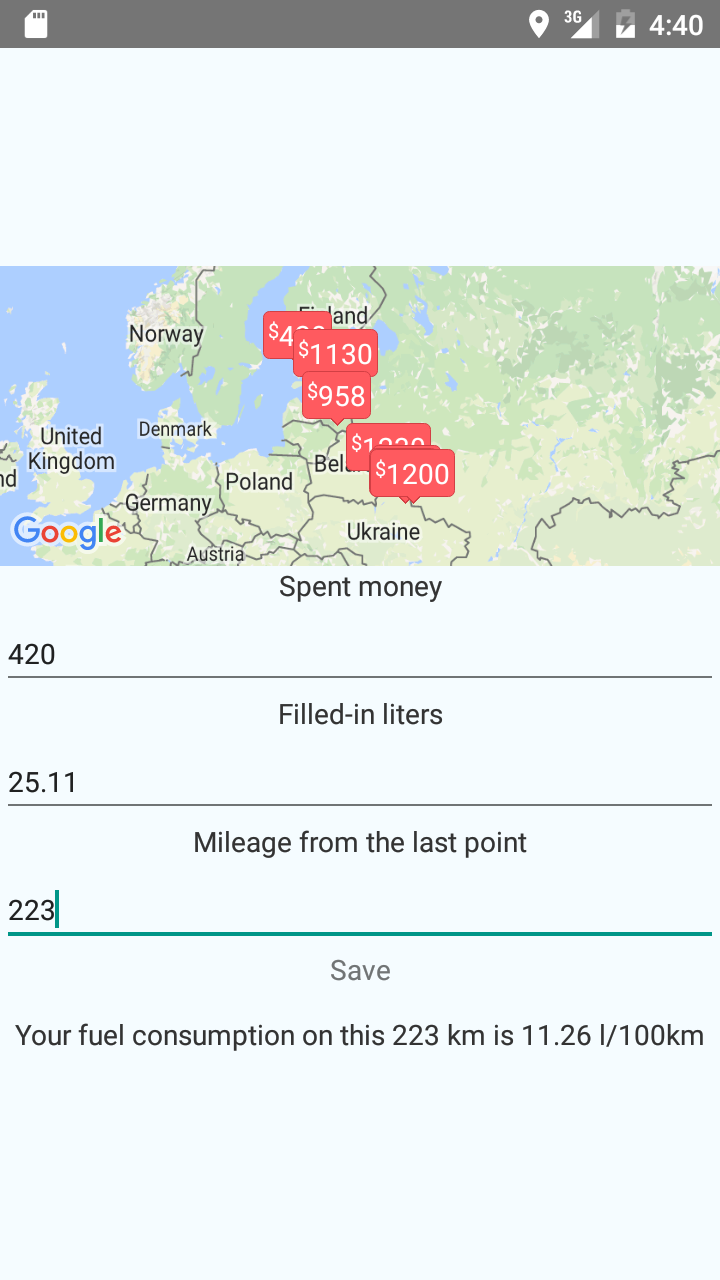

I think that my drive to Riga could look like this:

Android Application for tracking your spends with Google Maps Support Android Application for tracking your spends with Google Maps Support Android Application for tracking your spends with Google Maps Support

That’s it! Finally, don’t forget to commit your changes.

You can manipulate with the saved data in any way: calculate all user’s expenses, mileage driven, average fuel consumption or create a swarm-like application.

Link to the GitHub source

Just for the case if you are not sure what is the difference between ReactJS and React Native.
React Native is a mobile framework that compiles to native app components.
It allows you to build native mobile applications (iOS, Android, and Windows) in JavaScript.
ReactJS is full JS library which is easy to use on your web.

Both are open sourced by Facebook.
